Preserve the scientific story
Use motion to guide attention through a figure without replacing its approved conclusion.
Guided motion
Reference-guided figure motion
Scientific Figure Animator
Use the Scientific Figure Animator to turn a reviewed pathway, mechanism diagram, workflow, or research figure into a short motion draft. Direct existing arrows, highlights, and stages without rewriting the scientific story.
Scientific Figure Animator
10s · 720p · 16:9 · 123 credits
Video Preview
Generated video will appear here
How it works
Create a reviewable Scientific Figure Animator draft in three steps
Plan the source, motion, and review criteria before using the Scientific Figure Animator workflow for a presentation, teaching clip, or research update.
Prepare the source or brief
Choose one reviewed figure or describe one process, transition, or graphical-abstract reveal that the clip should explain.
Define the motion
State what should move, what must stay fixed, the aspect ratio and duration, and where the visual story should end.
Review the clip
Compare labels, structures, relationships, timing, and implied meaning with the source before presenting or sharing the draft.
Prepare the source or brief
Choose one reviewed figure or describe one process, transition, or graphical-abstract reveal that the clip should explain.
Define the motion
State what should move, what must stay fixed, the aspect ratio and duration, and where the visual story should end.
Review the clip
Compare labels, structures, relationships, timing, and implied meaning with the source before presenting or sharing the draft.
Scientific figure animation examples
Explore focused motion patterns for pathways, mechanisms, and workflows while preserving the source figure's scientific meaning.

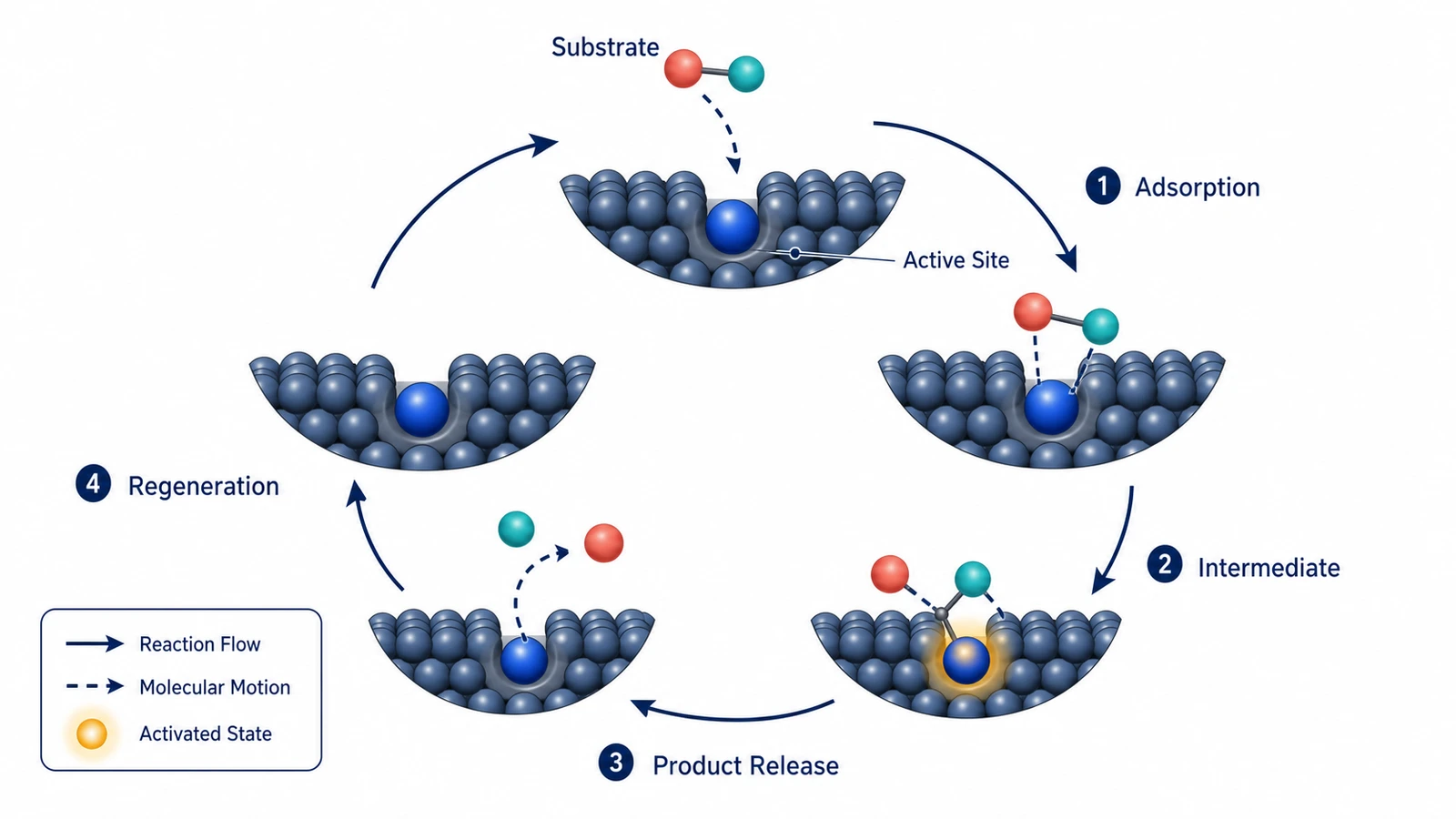

Pathways and mechanisms
Choose a clear source figure with one primary process and readable visual hierarchy.
Source figure
Bounded motion direction
Name the start, direction, stopping point, and labels that must remain unchanged.
Motion direction
Why SciDraw
Why use SciDraw for the Scientific Figure Animator workflow?
SciDraw combines a focused Scientific Figure Animator workflow with structured prompts, relevant examples, and a review step. That keeps the page useful for planning and refinement instead of treating a scientific visual as decoration.
Workflow need | SciDraw | Generic image tools |
|---|---|---|
Clear visual intent | Start with a focused brief and a defined audience. | The prompt may focus on appearance without a review goal. |
Scientific structure | Describe labels, relationships, stages, boundaries, and flow explicitly. | Connections and hierarchy may be inferred or left ambiguous. |
Reviewable iteration | Refine the visual against its source material and review criteria before sharing. | A visual may need to be rebuilt in another workflow after generation. |
Audience-aware output | Adapt density, labels, framing, and reading order for papers, talks, teaching, or planning. | One generic composition may not fit the intended audience. |
Practical guide
Plan and review the Scientific Figure Animator workflow
Use the guidance below to turn Scientific Figure Animator briefs into clearer scientific visuals, check their meaning, and prepare the next revision with confidence.

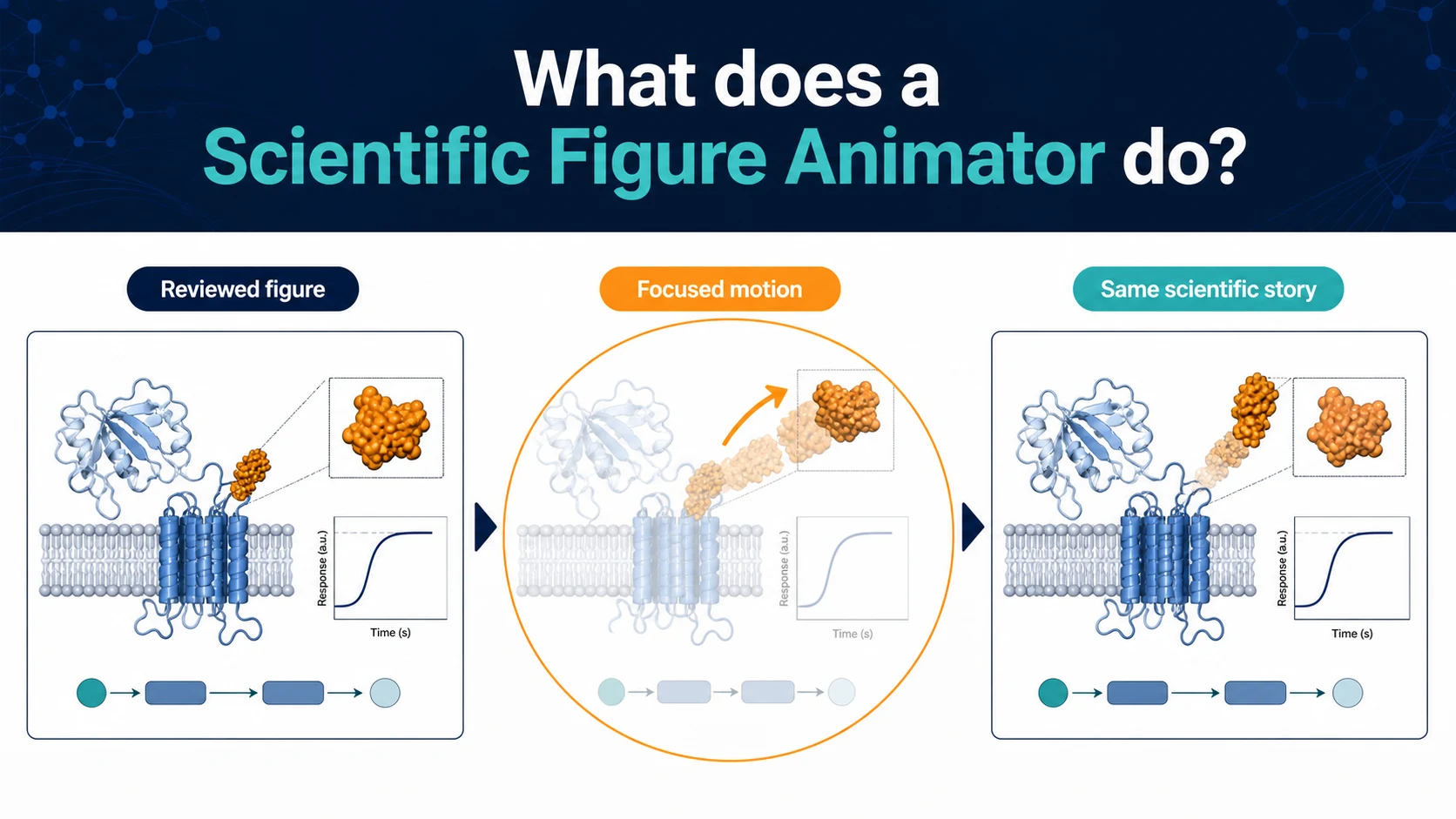

What does a Scientific Figure Animator do?
A scientific figure animator uses an existing pathway, mechanism diagram, workflow, or research illustration as the visual reference for a short animation draft. Instead of asking the model to invent a new scientific story, the user identifies which established arrow, region, object, or stage should move. This makes the workflow most useful for figures with a clear hierarchy and one primary process to explain. Simple compositions with visible arrows and separated stages are easier to direct than dense multi-panel results or pages dominated by small text. In SciDraw, the landing-page action opens the Video workspace in reference mode so the source figure and motion direction can be added there. The generated clip can support a lecture, presentation, digital poster, or internal explanation, but it does not guarantee exact preservation. Small labels, connectors, geometry, object identity, and event order should be compared with the original figure frame by frame. When a figure is dense, crop or simplify the relevant panel before animation and keep critical text static whenever possible. The motion should support the explanation already present rather than introduce a new conclusion.
Figures that work well with focused motion
Use a clear source with one primary visual story and enough space for the moving elements to remain readable.

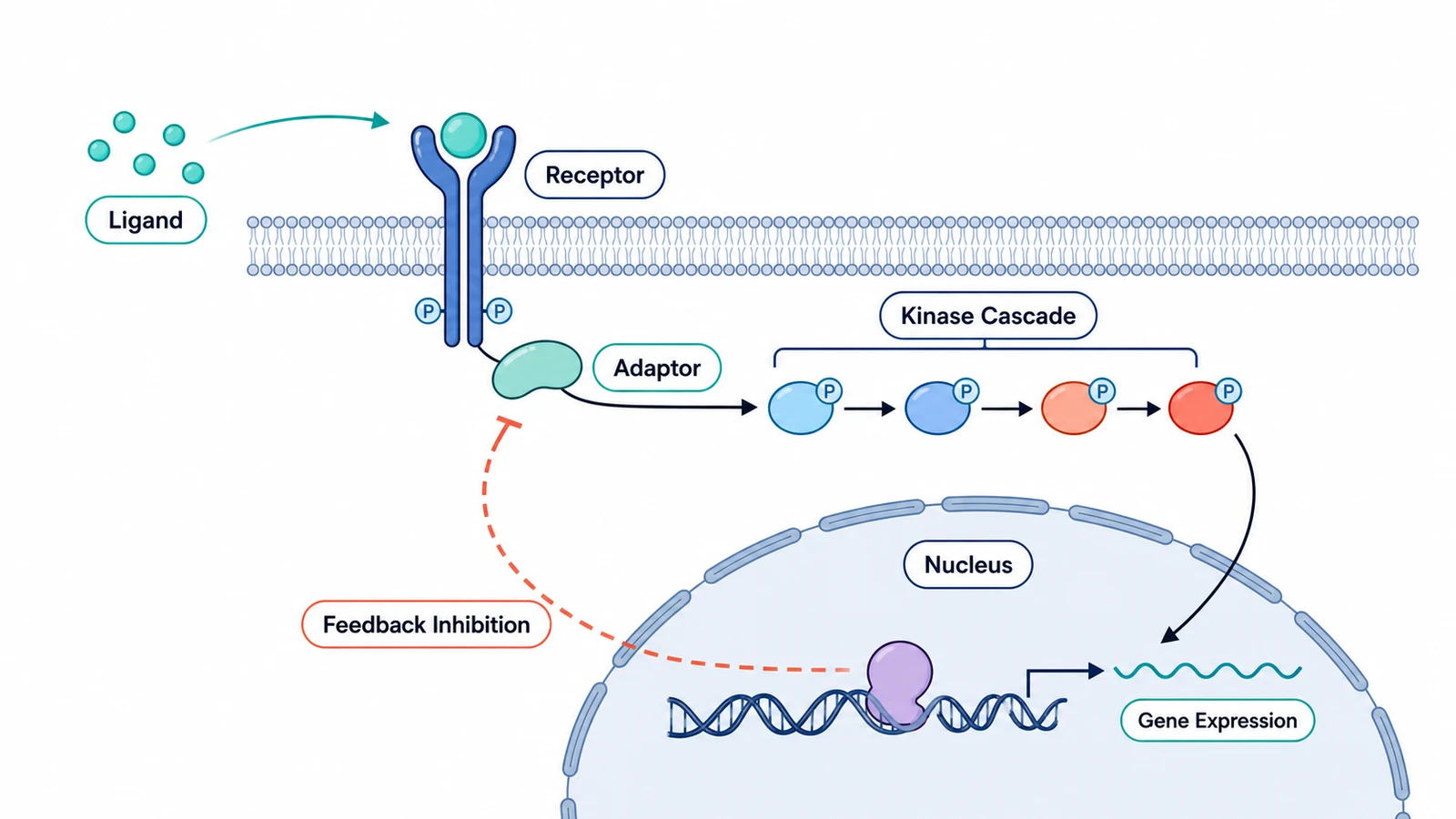

- Biological pathways: Trace directional flow along established nodes, arrows, or interactions.
- Mechanism diagrams: Emphasize one object, state change, or relationship at a time.
- Experimental workflows: Reveal reviewed stages in their existing order for presentation or teaching.

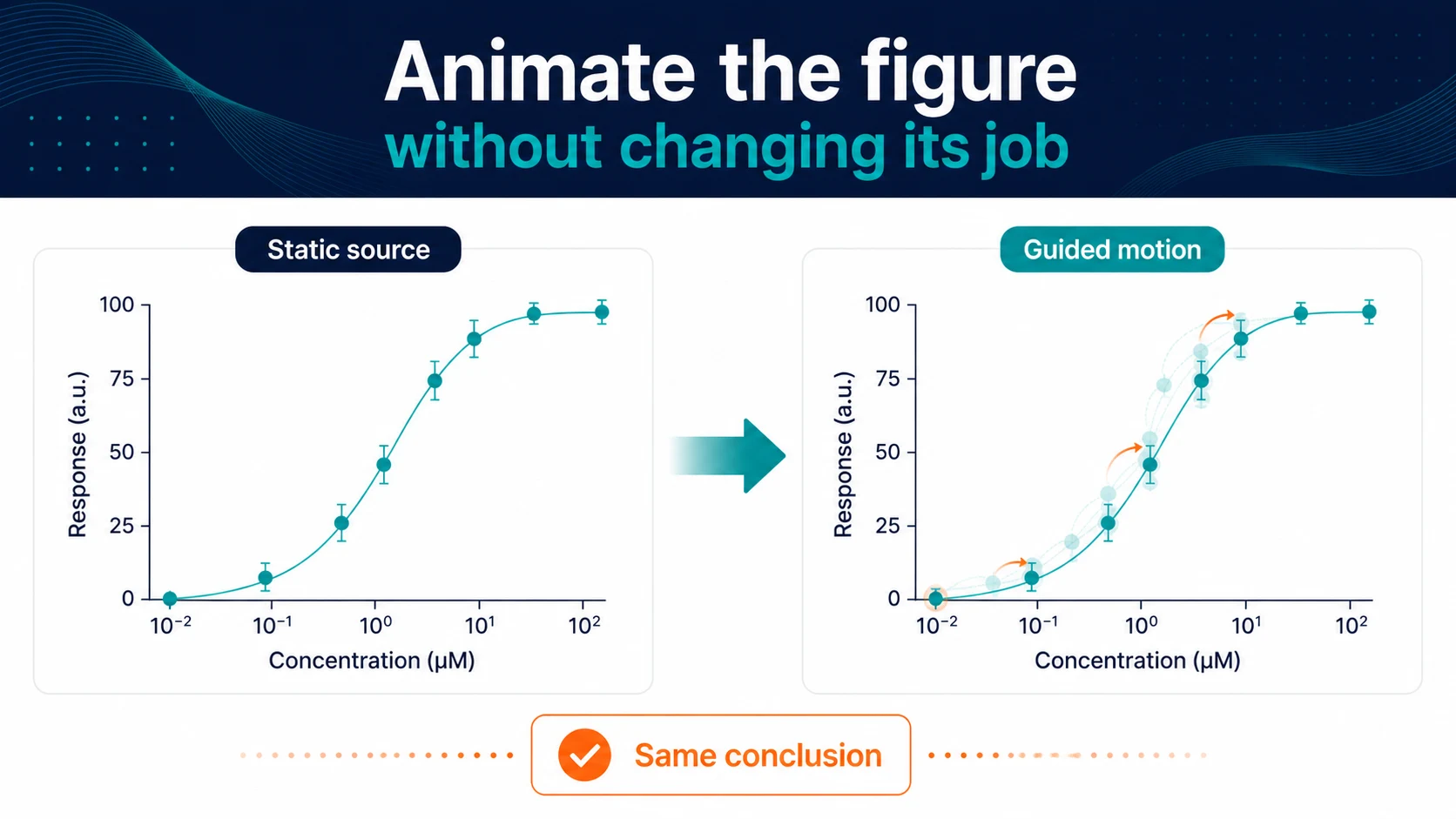

Animate the figure without changing its job
- Prepare the source: Use one reviewed figure with readable labels and a clear visual hierarchy.
- Bound the motion: Name what may move and which labels, panels, and structures should remain stable.
- Compare the output: Pause at several frames and check the draft against the original figure.

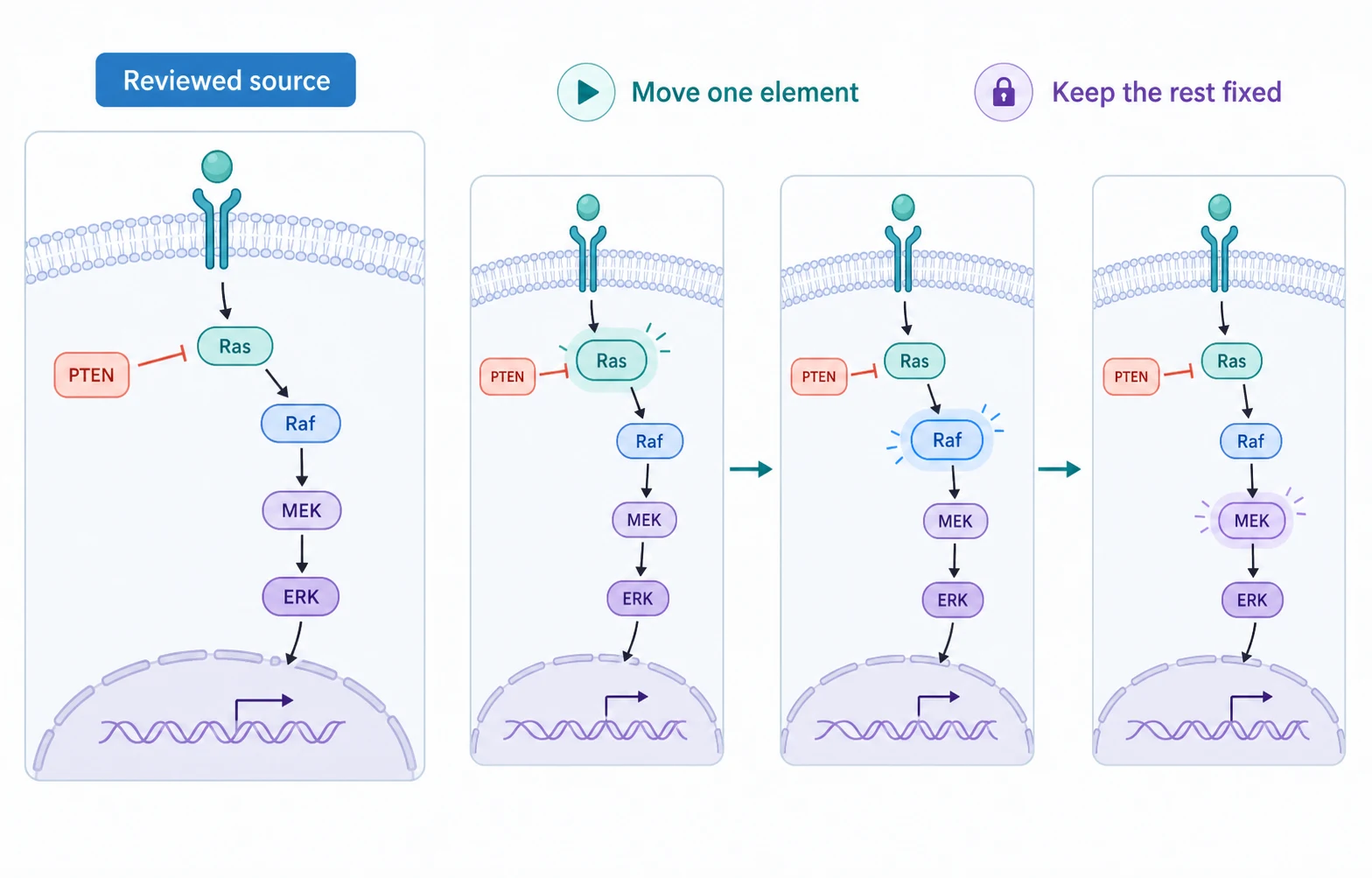

Direct motion already supported by the figure
The prompt should clarify the figure's existing logic rather than invent a new relationship. Describe the direction, order, emphasis, and stopping point.
- Trace flow along an existing arrow.
- Reveal established stages in sequence.
- Pulse or highlight one source region.
- Move a known object between defined states.
- Keep legends, labels, and comparison panels still where possible.

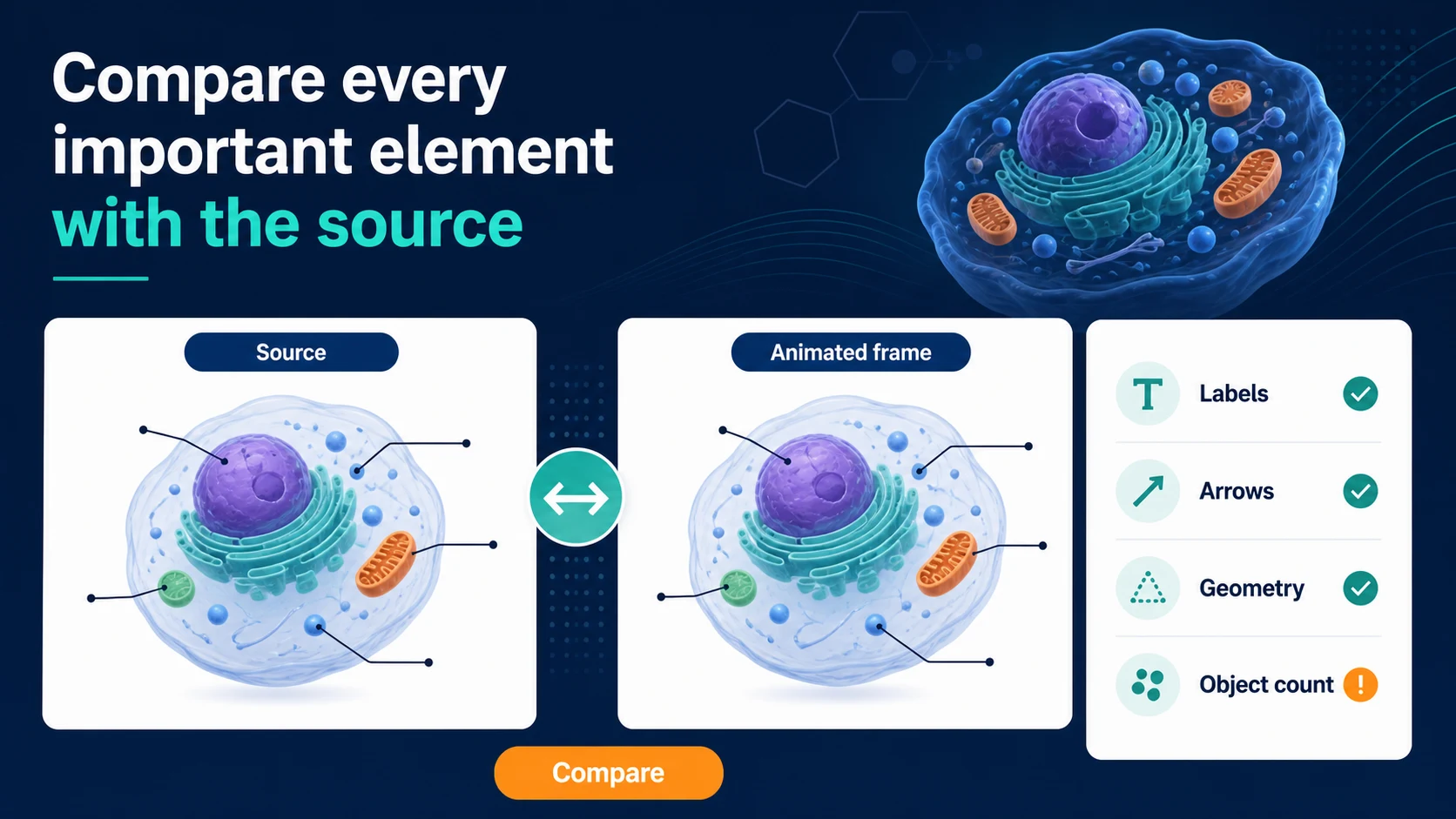

Compare every important element with the source
Reference-guided generation does not guarantee exact preservation. Check the output frame by frame before external use.
- Label spelling, placement, and legibility
- Object count, identity, and relative position
- Arrows, connectors, and flow direction
- Anatomical, molecular, or device geometry
- Stage order and timing
- New relationships or claims introduced by motion
When to animate an existing scientific figure
A scientific figure animator is most useful when the source already contains the scientific story and motion only needs to guide attention. Pathways, mechanism diagrams, workflows, and teaching illustrations can benefit from a moving arrow, staged reveal, or restrained highlight. Dense multi-panel results, tiny labels, and figures that depend on exact numerical comparison are better kept static or prepared as a simplified crop first.
- Start with one reviewed figure and one primary motion goal
- Animate an established arrow, region, object, or workflow stage
- Crop a relevant panel when the complete figure is too dense to read
- Keep critical labels, legends, axes, and comparison panels still where possible

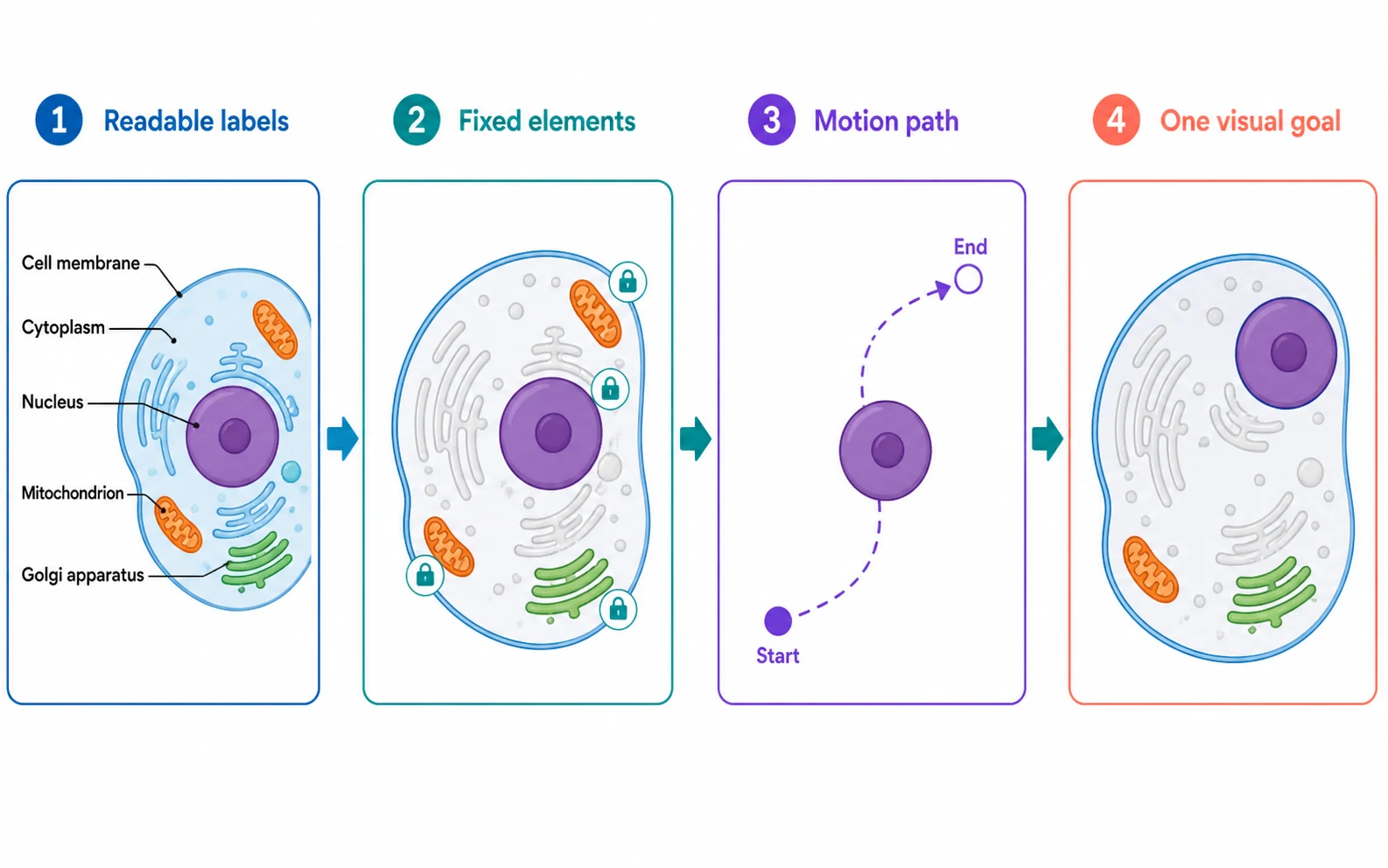

Prepare a source figure for reference-guided motion
The quality of a figure animation depends on how clearly the source separates objects, labels, arrows, and stages. Before uploading, use the cleanest approved export available and remove unnecessary surrounding detail. In the motion prompt, identify the starting point, direction, stopping point, and elements that must not change. This gives the model a bounded task and gives you a clear checklist for review.
- Use a high-contrast image with readable labels and a clear visual hierarchy
- Name the elements that may move and the elements that must remain fixed
- Describe the existing direction or sequence instead of inventing a new relationship
- Avoid asking one short clip to explain several unrelated panels

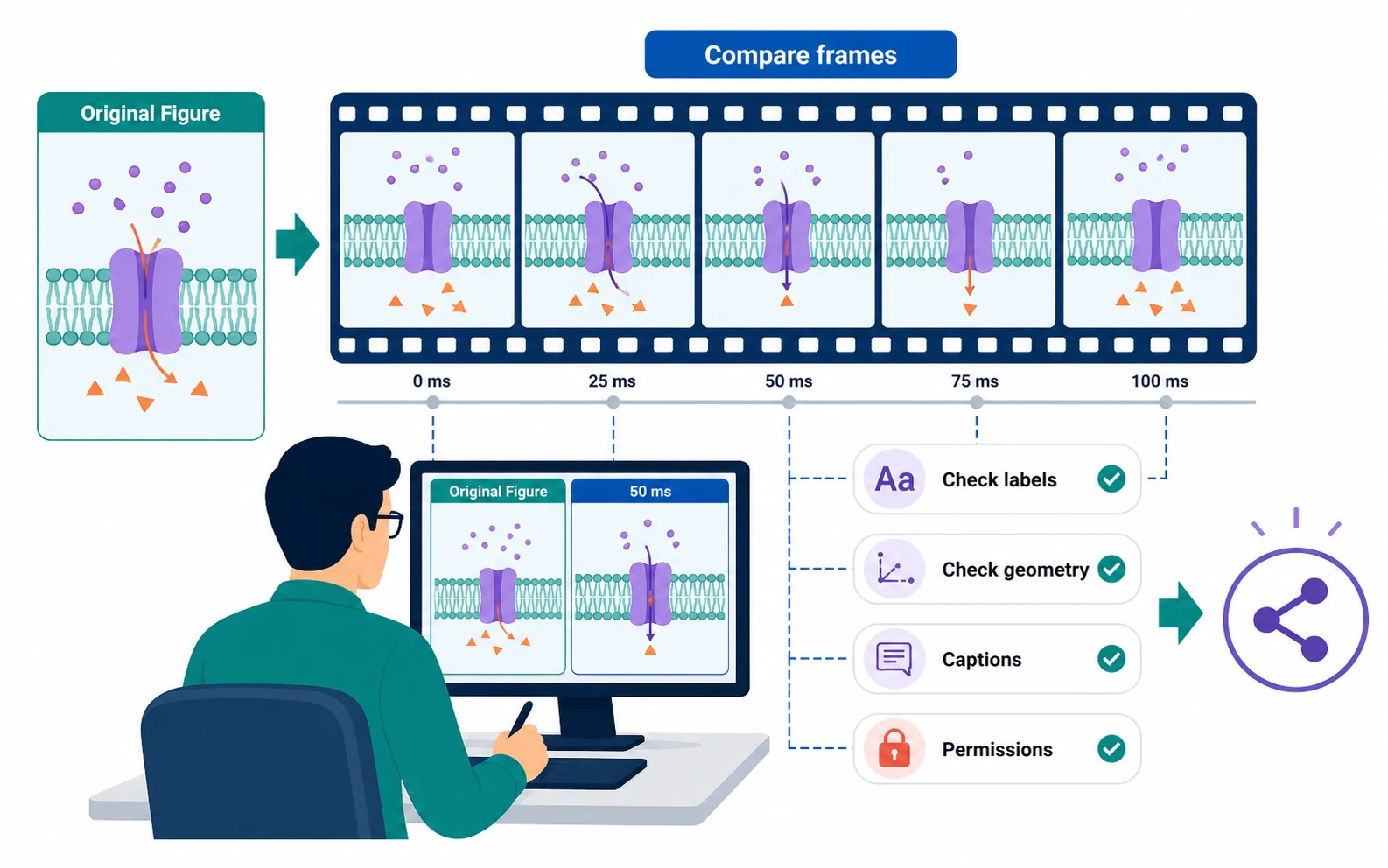

Review and share an animated scientific figure
Reference-guided generation does not guarantee pixel-accurate preservation of a research figure. Review the result at several points in the clip, not only the opening and final frames. If a label, connector, structure, or object identity changes, narrow the motion request or keep that element static. Treat the animation as a presentation and communication draft until the scientific and editorial checks are complete.
- Compare labels, arrows, geometry, object count, and relative position with the source
- Check that the reveal order matches the mechanism or workflow being explained
- Add captions or narration separately when motion alone is not accessible
- Confirm source permissions and any AI-use disclosure requirements before publication
